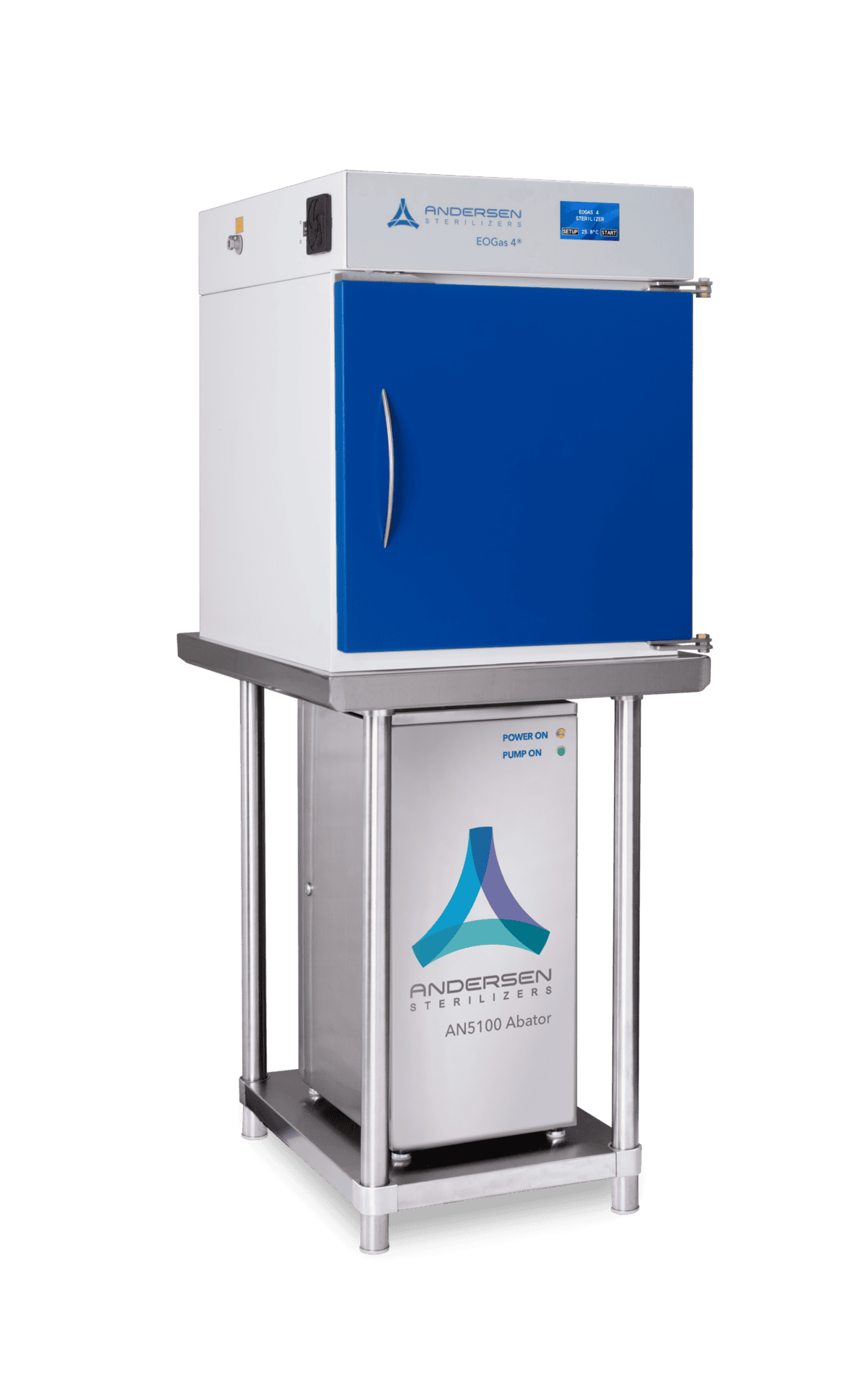

EOGas 4
Fastest Turnaround
The only sterilization system cleared by FDA 510(k) for terminal sterilization of duodenoscopes & colonoscopes.

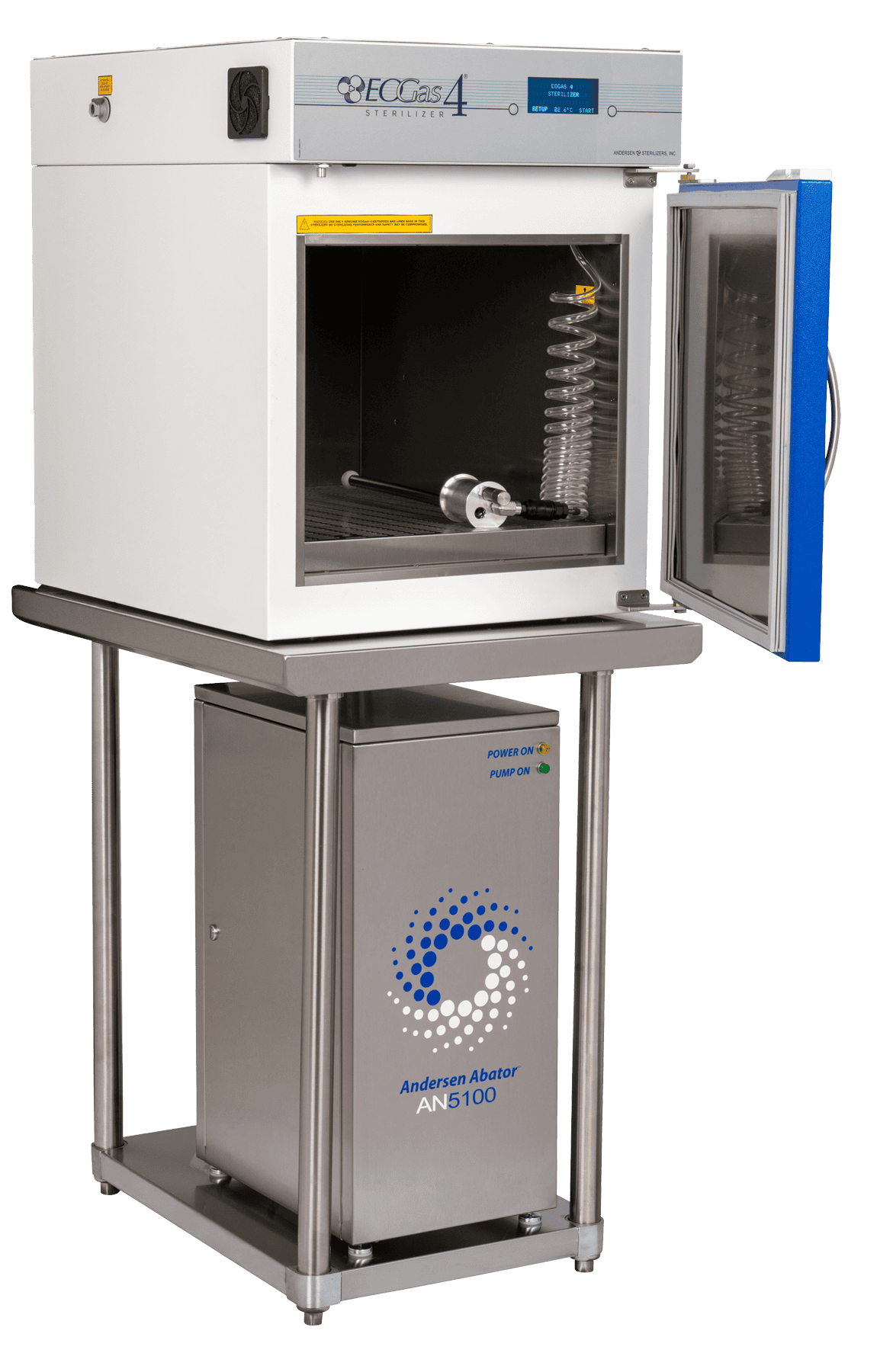

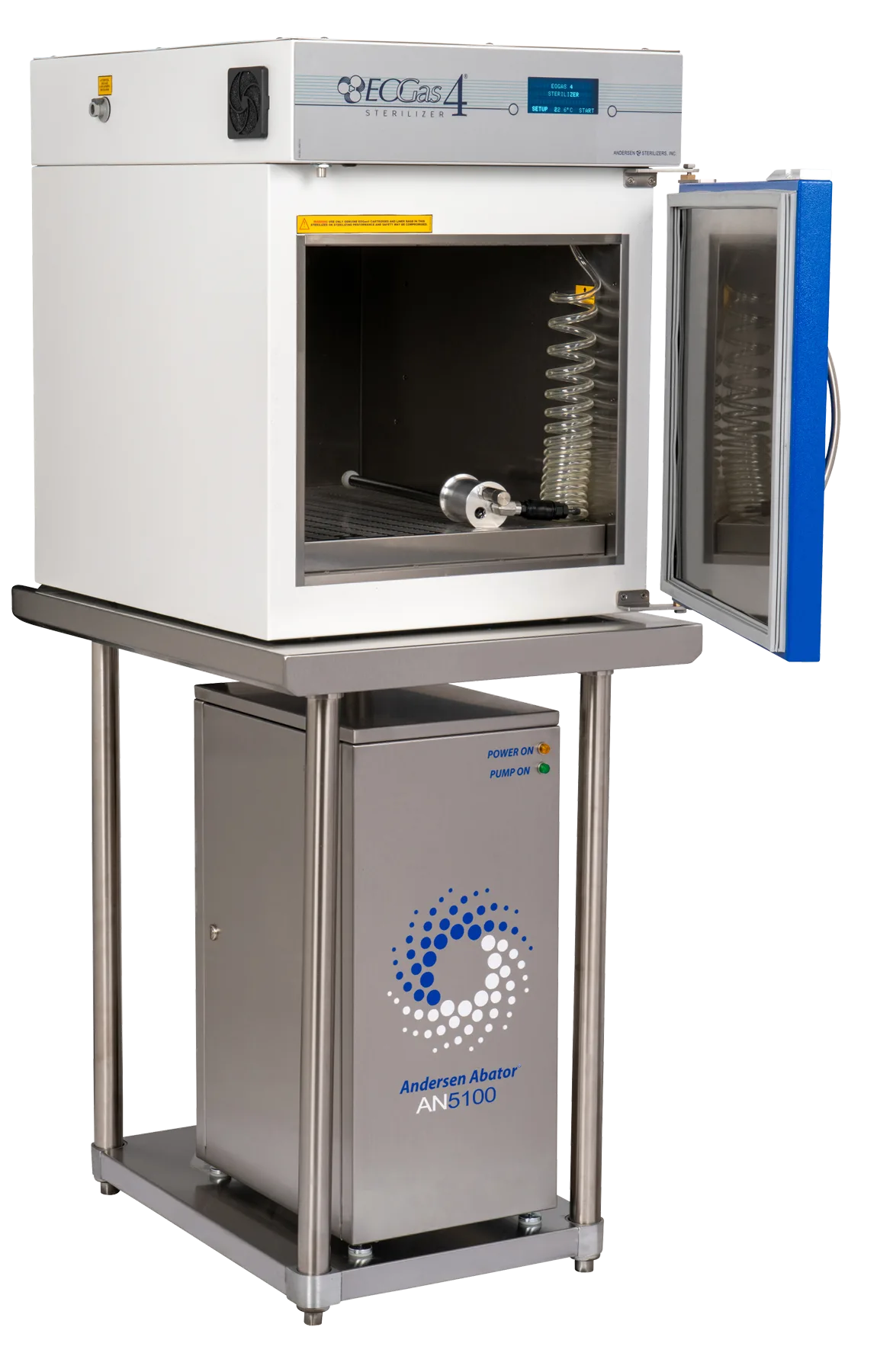

Andersen’s FDA-cleared, temperature-controlled EOGas 4 features four cycles with active aeration in the same cabinet – the fastest being just 3.5 hours, including aeration. All in a convenient tabletop format.
Description
Images
Accessories
Documents
Training
Videos
Description
3.5-Hour Sterilization
Achieves FDA-required 10-6 sterility assurance level for terminal sterilization of medical devices.
Easy Installation
Requires only a 120v or 240v outlet and a 1″ dedicated exhaust line.
Lock Mechanism
Door automatically locks at the start of the cycle and unlocks at the end.
Active Aeration in Same Chamber

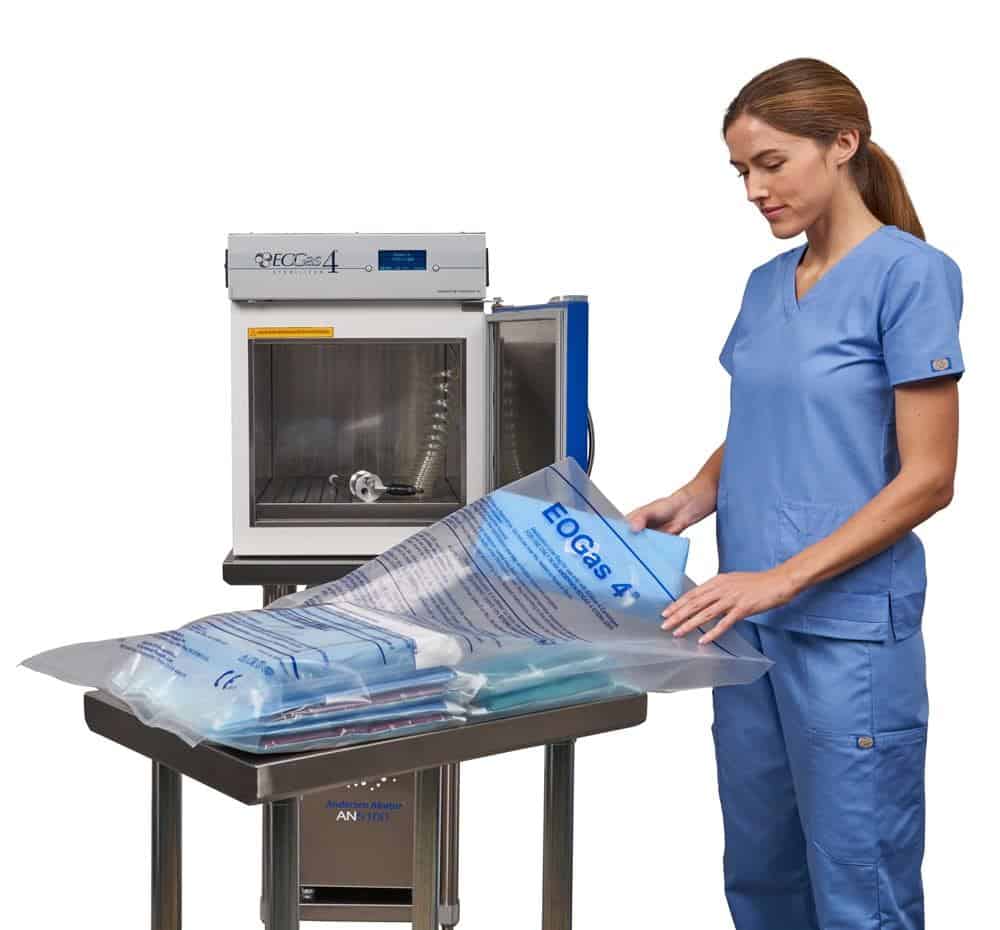

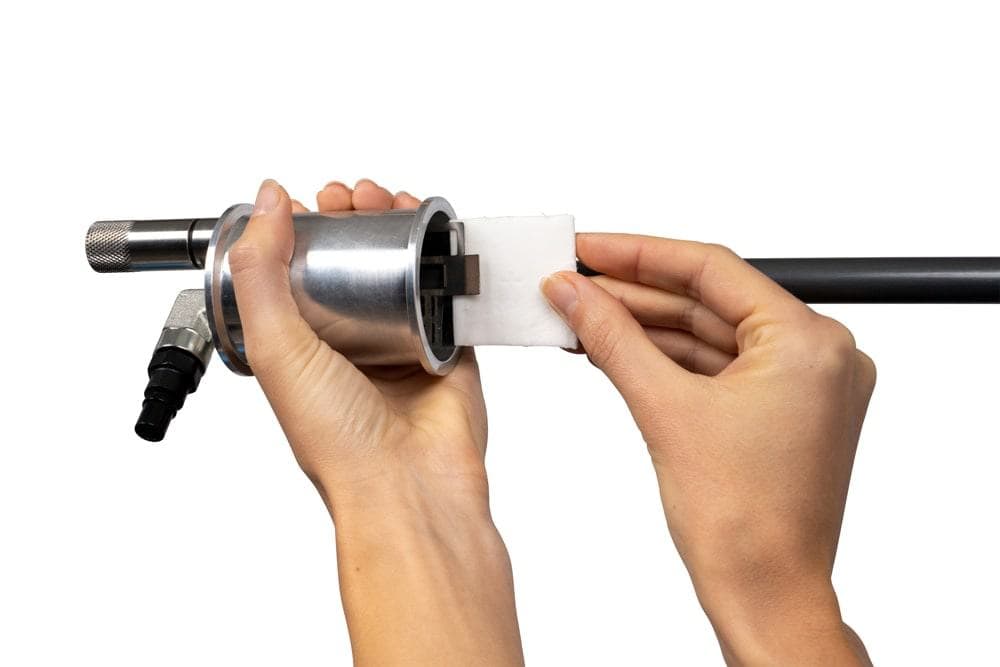

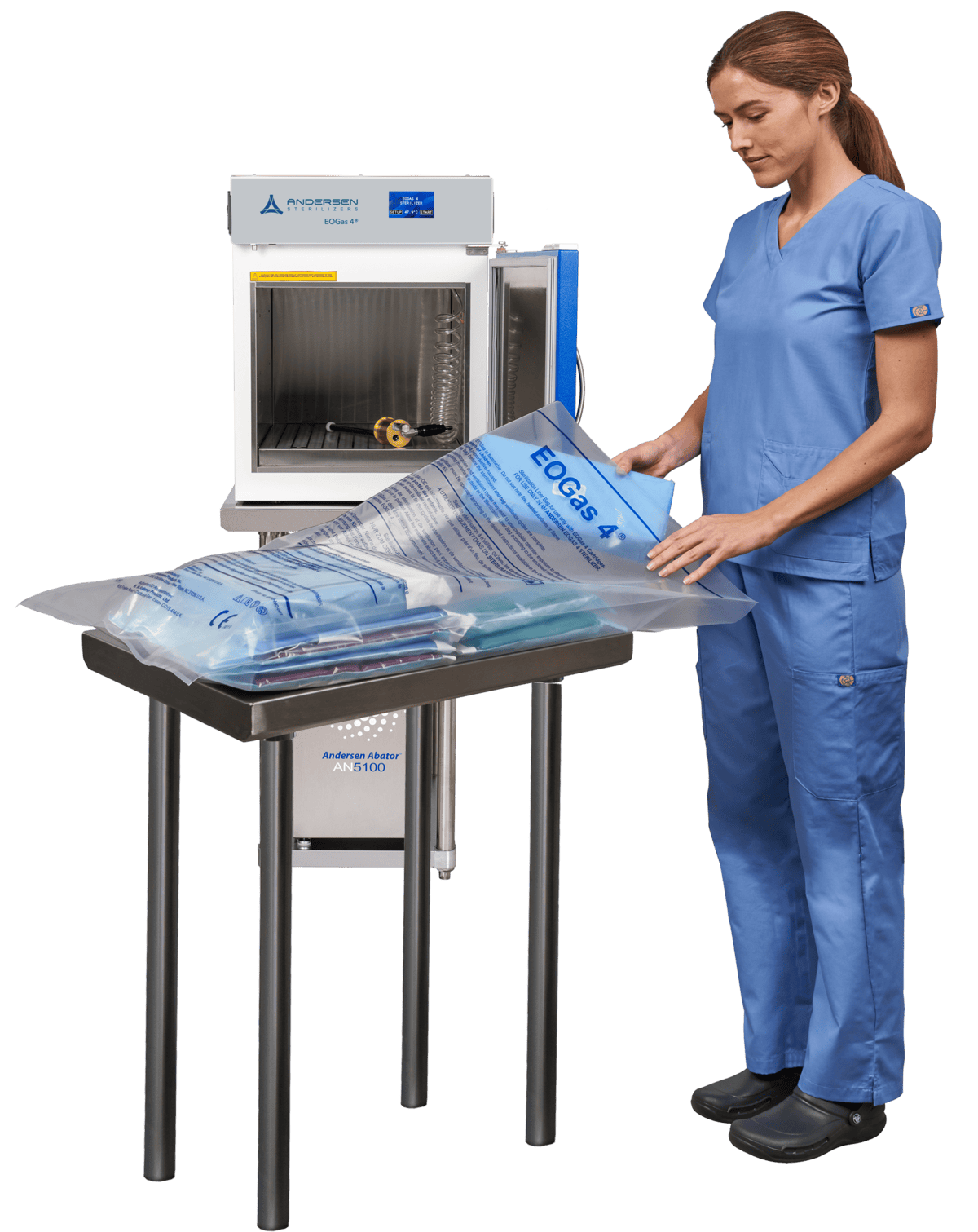

Purge probe flushes the liner bag with a constant flow of fresh air at the end of the cycle – no need to transfer items to a separate area. EO-absorbent items may require additional aeration.
17.6g EO Cartridge
Terminal sterility with 90% less EO than any other system on the market. Cartridge protects the hermetically sealed glass EO ampoule from accidental activation.
Make your System Zero Emissions
Andersen abators are a simple, cartridge-based system that employ a dry catalyst resin that converts ethylene oxide to biodegradable organic compounds. Replaceable abator cartridge has a 200 cycle capacity. Spent cartridges are non-hazardous.
Free Operator Training
It’s like having a sterilization expert on staff! Free operator training for the life of your sterilizer and free 24/7 support.

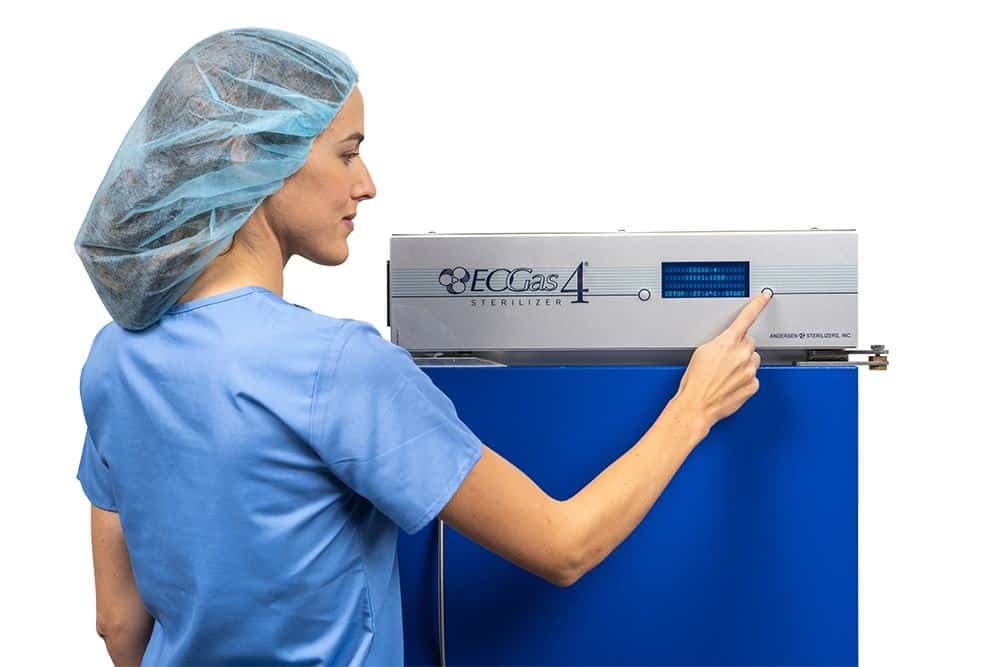

Simplified Controls
Easy to use two-button interface and digital display. Sterilization status and cabinet temperature shown throughout the cycle.
Controlled Environment
Warm air circulates throughout the chamber walls to maintain a constant temperature – ensuring effective sterilization and aeration.

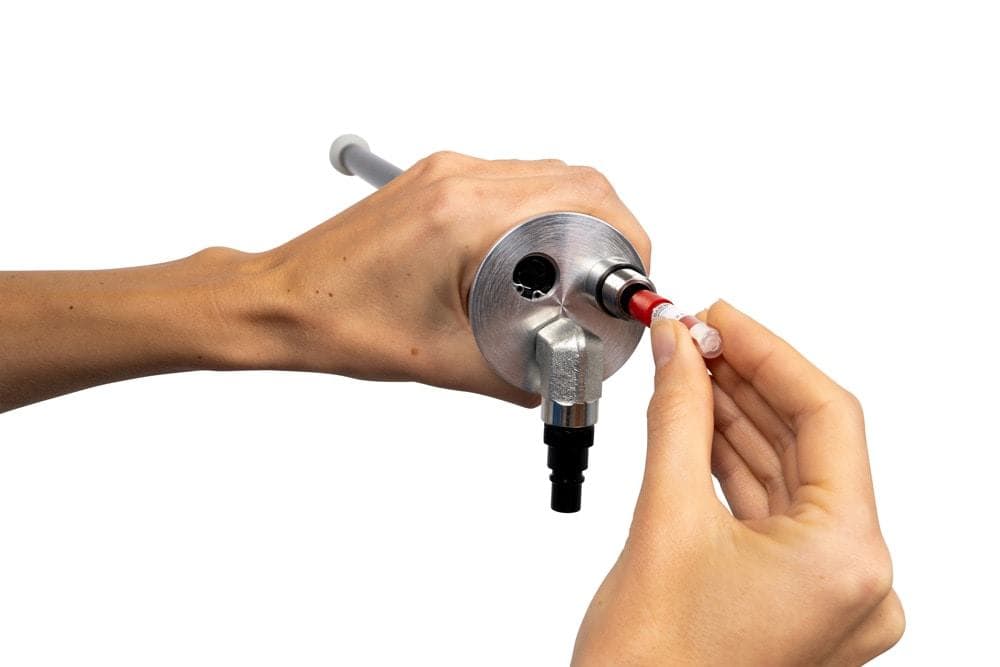

Process Challenge Device
Built into the purge probe handle to ensure the 10-6 biological indicator is consistently placed in the most difficult location for EO to reach in every cycle – providing data driven results, regardless of the operator.
Unmatched Sterilization Compatibility
Temperature-controlled cabinet sterilizes at low temperature without external vacuum lines or steam generator. Protects your most delicate instruments, electronics, drills, fiber optics, hand pieces and cameras. As well as those plastic, fabric, cellulose or rubber items that you can’t sterilize with other methods. Most any item with the exception of food, drugs or liquids.
Shelf Life
The FDA has cleared EOGas 4 sterilization loads wrapped with Sterisheet® or Tyvek® Sterilization Pouches with Chevron Seal – both have a shelf life of at least three months.
Commonly Sterilized Items
With Andersen, achieve 10-6 SAL terminal sterilization without loss of efficacy (dulling, clouding or degrading):
- Cystoscopes
- Ureteroscopes
- Bronchoscopes
- Duodenoscopes
- Colonoscopes
- Gastrovideoscopes
- Choledocoscopes
(FDA-cleared for all instruments above and more)
- Delicate hand-pieces and associated cording
- Mix-material instruments or trays
- Volk lenses/loops
- Implants
- Sharps
- Plastic
- Rubber
- Non-wovens/Cellulose
- Fiber optics
- Other Electronics
- Batteries
Images
Accessories
AN2203 EZTest Biological Indicator
Self-contained Biological Indicators (BI’s) provide sterility assurance for EO cycles. EZTest® contains a high population (106) […]
AN5100 EO Abator
For use with Anprolene and EOGas 4 sterilizers. Andersen’s Emissions Abators are designed to remove more than 99% of the ethylene oxide emitted from our sterilizers.
To order, call: 800.523.1276 or View all EOGas 4 Accessories
Documents
BROCHURES
INSTRUCTIONAL MATERIALS
- EOGas 4 Brochure
(Spanish, French) - Installation Instructions
(Spanish, French) - EOGas 4 Zero Emissions Math
- Ethylene Oxide Safety Data Sheet – EO SDS
(Spanish, French) - Compare All Andersen Sterilizer Models
- Health Canada License EOGas 4
- Health Canada License AN1004
- Directions for Use: EOGas 4 Plus AN4000.60/AN4000.61
(English)

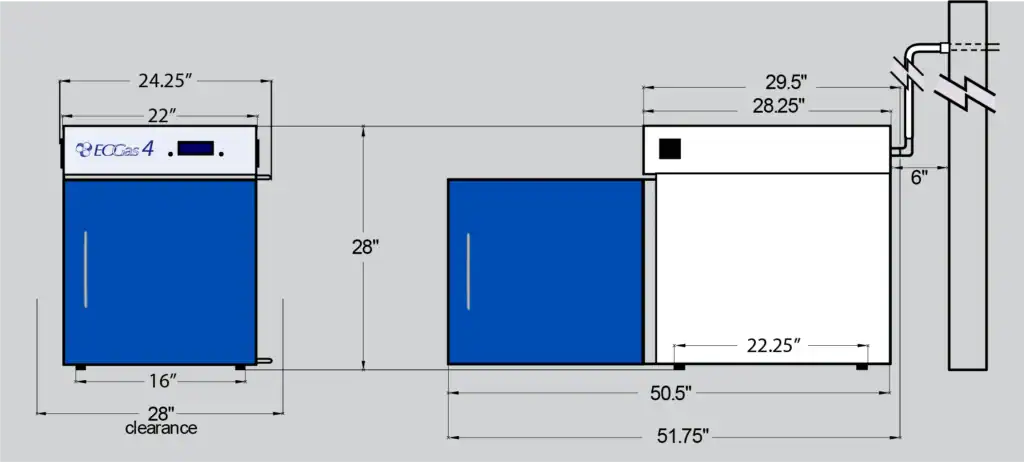

SPECS – Exterior Dimensions. See brochure for interior.
Training
Andersen provides free training for as many operators as required, for the lifetime of any of its sterilizers.
Videos
Using the EOGas 4 Sterilizer
It’s so easy to operate our EOGas 4 sterilizer. This short (4 min) tutorial proves it! We walk you through the process, step-by-step, and review placement of all recommended accessories.
EOGas 4 Sterilization Process
Here is a quick run-down on how sterilization works in our EOGas 4.
The latest generation of heated gas sterilization units have been a game-changer because instead of a 24-hour cycle, now we have a few hours cycle and it’s just changed our whole environment.”
Dr. Joseph Hunstad
Board Certified Plastic Surgeon
H/K/B Cosmetic Surgery
Charlotte, NC
It’s super easy to use. Very effective. The one thing I really like about it is: The machines, they never fail. We don’t really have an issue with having to turn equipment over because we know that it’s going to be successful every time.
The machine that we have is so quick. We’re able to process a lot of our equipment that typically, in a normal sterilizer you wouldn’t be able to do because it would damage the equipment.”
Kristin Morrison
Registered Nurse
H/K/B Cosmetic Surgery
Charlotte, NC
Our EOGas 4 sterilizer is one of the best investments our clinic has made. The ability to sterilize a load in 3.5 hours has allowed our surgical productivity to increase dramatically.
Plastics that cannot be autoclaved can now be gassed, allowing continual savings to the hospital and to the client by keeping overhead lower. The gas unit is very easy to operate and requires minimal staff time freeing up technicians to complete other tasks.
Again, I cannot emphasize enough how much we use our sterilizer and what a positive impact it has on our hospital.”
Markee Kushel, DVM
Medical Director
Deer Creek Animal Hospital
Littleton, CO
The practice grew bigger and bigger, we had larger and larger gas bags to run every single day. And just from a sheer volume, we were running out of time to turn everything over in a safe amount of time.
So we looked into the new system that allowed a shorter cycle. We’re able to turn things over midday, rather than having to wait overnight.”
Amy Morgan
Veterinary Technician Manager
BluePearl of Richmond VA
We are a very busy surgical center and we use our sterilizers every day.
Technicians routinely sterilize anything we can: Bulb syringes, tubing, staplers, cautery, scopes, sutures, ET tubes, light handle covers, surgery packs, ligature tools, TPLO kits, etc. Veterinary Surgical Specialists has been using Andersen sterilizers for almost 20 years.”
Aimee Greenfield
Technician Manager
Veterinary Surgical Specialists
Tustin, CA
We love our EOGas 4 sterilizer! We like the fact we can do 3- or 5-hour cycles, rather than 12 or 24 hours with the old machine. It’s fantastic!”
Liz Wilbur
Veterinary Assistant
Animal Surgical Center of Michigan
Flint, MI
Why Ethylene Oxide (EO/EtO) Sterilization?
Ethylene oxide is the gold standard in sterilization. It offers hospital-level sterility assurance (10⁻⁶) along with
unparalleled gentleness and material compatibility.
Why Andersen?
FAST
Turn-around time for delicate medical items has never been this fast – just 3.5 hours, including aeration, with the EOGas 4.
Efficient
Maximum performance, minimum gas. Just 17.6g of EO – 90% less gas than any other sterilizer on the market.
Versatile
Delicate instruments, electronics, drills, fiber optics, hand pieces, cameras, plastic, fabric, cellulose and rubber.
Easy to use
The simple interface makes using our sterilizers a breeze. Set it and forget it. Plus free training for life.
