AN5100 Abator Cartridge
Andersen abators are a simple, cartridge-based system designed to remove more than 99% of the ethylene […]

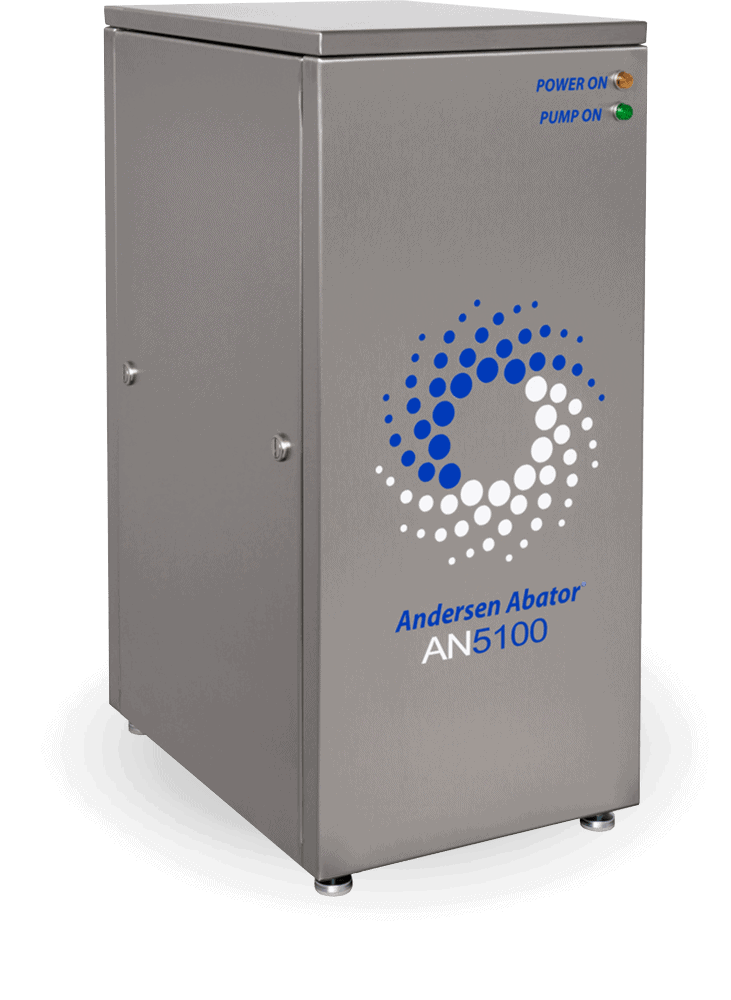

AN5100 EO Abator
For use with Anprolene and EOGas 4 sterilizers
The AN5100 EO Abator is designed to remove more than 99% of the ethylene oxide emitted from our Anprolene or EOGas 4 sterilizers.
The abator employs a dry catalyst resin that converts ethylene oxide to biodegradable organic compounds.
Our systems are recognized for using a microdose of ethylene oxide and our emissions fall well below all federal guidelines. If you choose to abate, remember we have this option for you.
Description
Accessories
Specifications
Training
Videos
Description
The AN5100 Abator is designed to remove 99% ethylene oxide emitted from the exhaust stream of an Anprolene or EOGas 4 sterilizer.
The emissions from ethylene oxide are regulated in many parts of the country. If these regulations apply to your area, the AN5100 Abator may be the right solution for you. There is no longer any need to worry about whether or not you are approaching the ethylene oxide emissions limit in your city or state.
Installation is simple, as the abator easily attaches to most new* sterilizers.
The vent hose from the sterilizer connects to the AN5100 EO Abator which is vented to the outside of the building.
The AN5100 Replacement Cartridge is available for shipping UPS or FedEx ground. Cartridges can be disposed of with ordinary trash if local regulations permit or returned to Andersen for disposal.
The abator is controlled and monitored through a single wire connection to the sterilizer. Accurate tracking of gas usage will automatically alert the operator when it is nearing time to change the cartridge.
* AN74i/ix starting with lot 243588/243583 (9/14/2004) are abator-ready. All AN75, EOGas 4, AN74j and AN2000 Sterilizers are abator-ready.
Accessories
UNAVAILABLE
AN2250 EO Chemical Indicator Tape features chemical indicator lines that show a strong, sharp color change after exposure to ethylene oxide.
AN2270 Chemical Indicator Tape Dispenser
AN2270 Chemical Indicator Tape Dispenser features a weighted base.
To order, call: 800.523.1276 or View all Abators Accessories
Specifications
AN5100 EO Abator Specifications
AN74i/ix starting with lot 243588/243583 (9/14/2004) are abator-ready. All AN75, EOGas 4, AN74j and AN2000 Sterilizers are abator-ready.
| Dimensions | 17″ L x 12″ W x 26.5″ H |
| Power | 115V, 4 amps or 230V, 2 amps |
| Operating weight | 67 lb |
| AN5100 Abator Order #: | 115V – AN5100.01 230V – AN5100.11 |
| Replacement Cartridge Order #: | AN5100.00 |
| Indoor use | Temperature range 68ºF – 91ºF |
Training
Andersen provides free training for as many operators as required, for the lifetime of any of its sterilizers.
Videos
Here’s how easy it is to install an AN5100!
Why ethylene oxide (EO/EtO) sterilization?
Ethylene oxide is the gold standard in sterilization. It offers hospital-level sterility assurance (10⁻⁶) along with
unparalleled gentleness and material compatibility.
Why Andersen?
Affordable
Low acquisition and per cycle cost. Inexpensive installation requires no external air compressors or steam lines.
Efficient
Maximum performance, minimum gas. Just 17.6g of EO – 90% less gas than any other sterilizer on the market.
Versatile
Delicate instruments, electronics, drills, fiber optics, hand pieces, cameras, plastic, fabric, cellulose and rubber.
Easy to use
The simple interface makes using our sterilizers a breeze. Set it and forget it. Plus free training for life.
